PERMEABLE BOARDWALK CLAY BRICK PAVERS
Samples of the fired-clay Permeable Boardwalk Paver are now available. The 2-1/4-inches wide x 9-inches long x 3-inches deep dry-pressed paver is suitable for pedestrian and vehicular traffic and can be installed in several bond patterns including: running bond, basket weave, herringbone and double herringbone.
Features1
• 11% void space
• ADA compliant – joint width 3/10″
• Available in all standard colors, including colors with SRI values of greater than 29
• Also available in a multi-shade recycled product
• Colorfast clay product
• Qualifies for LEED credits2
• Storm water management
• Reduces runoff
• Traps pollutants
• Eliminates ponding water
1 When installed using industry standard best practices. Consult an engineer for hydrology and load-bearing design considerations.
2 Consult the U.S. Green Building Council for credit details.
Permeable Boardwalk Clay Paver Literature
Suggested Installation Patterns
Permeable Boardwalk Paver Illustration

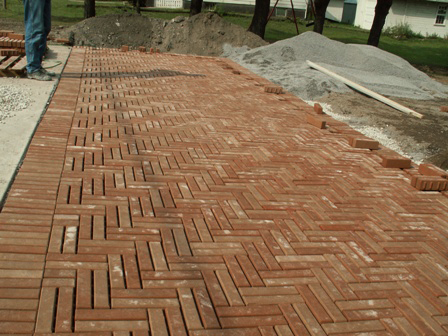

Boardwalk Paver Project Photos / Possible Installation Patterns

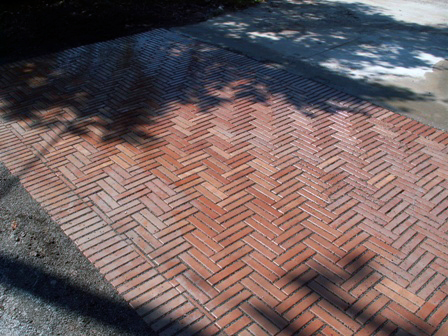

A test plot of Whitacre Greer Permeable Boardwalk Pavers is shown below. The plot simulates a typical crosswalk and is subjected to stopping, starting and turning truck and light vehicular traffic.
